Model Making
Journey of model making
This was a project where I enhanced by prototyping and workshop shills. How I can make the desired form and function of a product/concept using different materials. Materials like PVC pipes, wood, acrylic, PU foam, Polystyrene, etc. were used. I also looked at the different finishes that were possible on different materials to make the product look aesthetically pleasing and finished.
Technical Drawingns
Technical drawings of each component with accurate measurements so that they can be implemented in the model properly
Making of Model
Making of the model using PVC pipes, wood and acrylic sheets. Accurate curves and precise cuts were done manually for the perfect model
Finishing
Filing of the main 4 components to create a smooth finish

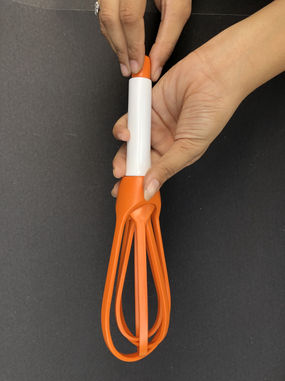

model v/s Original product
Original
Model
How is the model made?
1
2
3
4
5
6
7
Final Model
